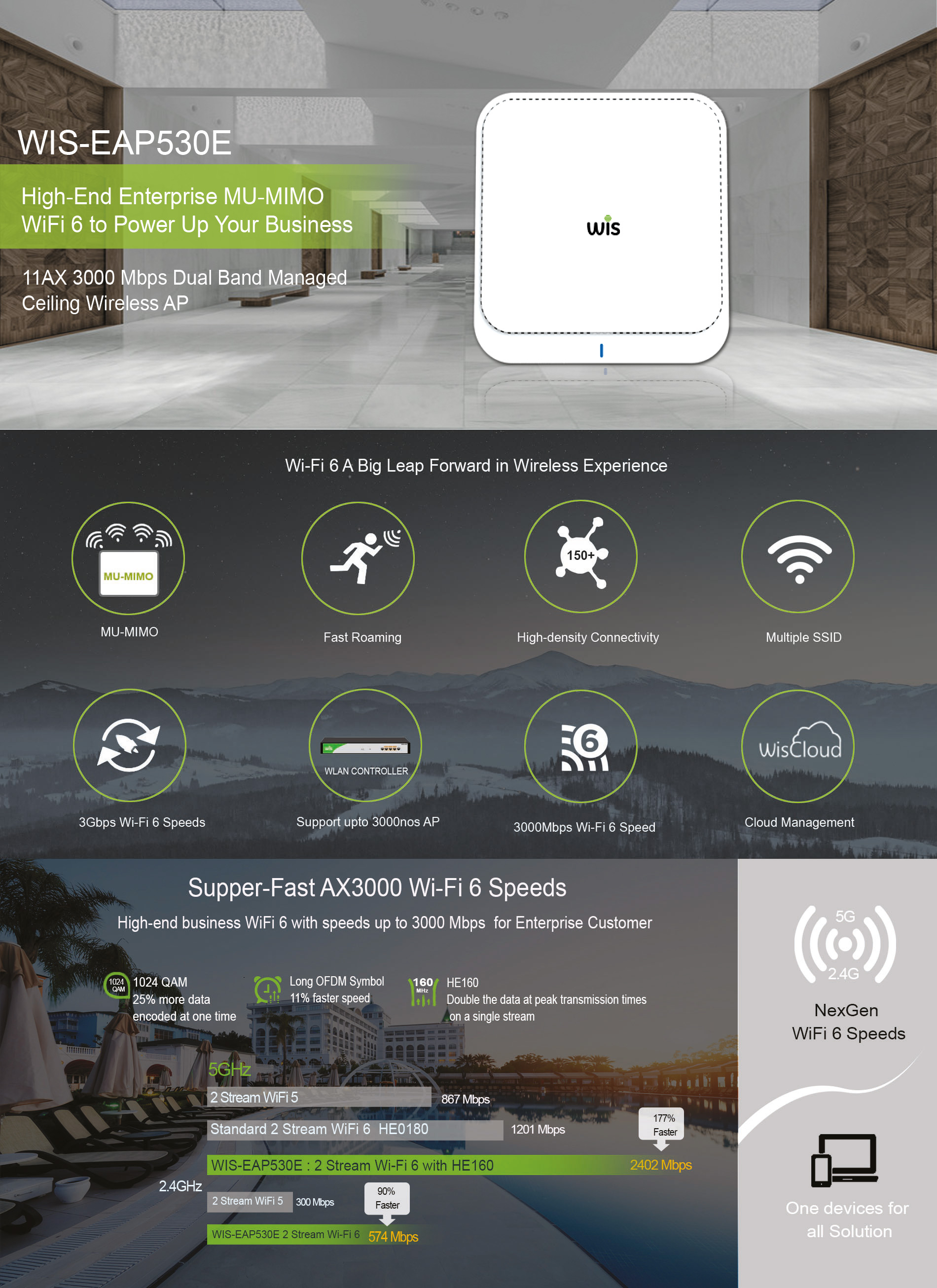

802.11AX | WIFI 6 | 2.5* Giga
Model: WIS-EAP530E
Full Wi-Fi Coverag in High-Density Environment.
The 802.11ax new-generation Wi-Fi standar Introduces multiple key technologies such as OFDMA, 1024QAM, MU-MIMO,
etc., with faster speed, more devices, and lower delay when multiple terminals use the network at the same time.
Fast Auto Roaming
Fast roaming can realiza the switching time between AP and AP in milliseconds, basically without packet loss, while using video and playing games,
when moving between multiple APs, the mobile phone and tablet will automatically switch to the with the best signal.
| Model | WIS-EAP530E |
| Chipset | Qualcomm |
| Standard | 802.11ax/ac/b/g/n/a |
| Flash | SPI NOR 8MB (1.8v) + NAND 128MB |
| DDR3L | 512MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G Wi-Fi standard | 802.11b/g/n/ax |
| 5.8G Frequency | 4.9~5.9G |
| 5.8G Wi-Fi Standard | 802.11 a/n/ac/ax |
| Interface | 1* Gigabit Console port; |
| 1 * 10/100/1000/2500Mbps RJ45 WAN port and PoE port, | |
| 1 * Reset button, press 10 seconds to revert to default setting | |
| Antenna | Build in 4*4dBi dual band MIMO Antenna |
| Data Rate | 3000Mbps （2.4G 600Mbps, 5.8G 2400Mbps） |
| End Users | 150 |
| 2.4G RF Power | ≤ 23dBm |
| 5.8G RF Power | ≤ 23dBm |
| DC | 12V----2A |
| PoE | 48V (IEEE 802.3at) |
| LED light | Sys, WAN, LAN |
| Power Consumption | ≤ 20W |
| Size | TBD |
| Working Mode | Gateway, AP |
| Wireless Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
| Support SSID hidden | |
| Support seamless roaming, 802.11kvr standard. | |
| Support 5G Prior for a faster Ethernet. | |
| Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3 | |
| Support MAC filter | |
| Support Wi-Fi time on/off to save energy | |
| Support client isolation to improve the wireless stability | |
| Support RF power adjustable, adjust the RF power based on environment. | |
| Support user quantity limited, Max 64 users to access each band. | |
| Networking Function | VLAN settings |
| Cloud access support in gateway mode | |
| Device Management | Back-up the configuration |
| Restore the configuration | |
| Reset to factory default | |
| Reboot the device: including time reboot or reboot immediately | |
| Admin management password modify | |
| Firmware upgrade | |
| System log | |

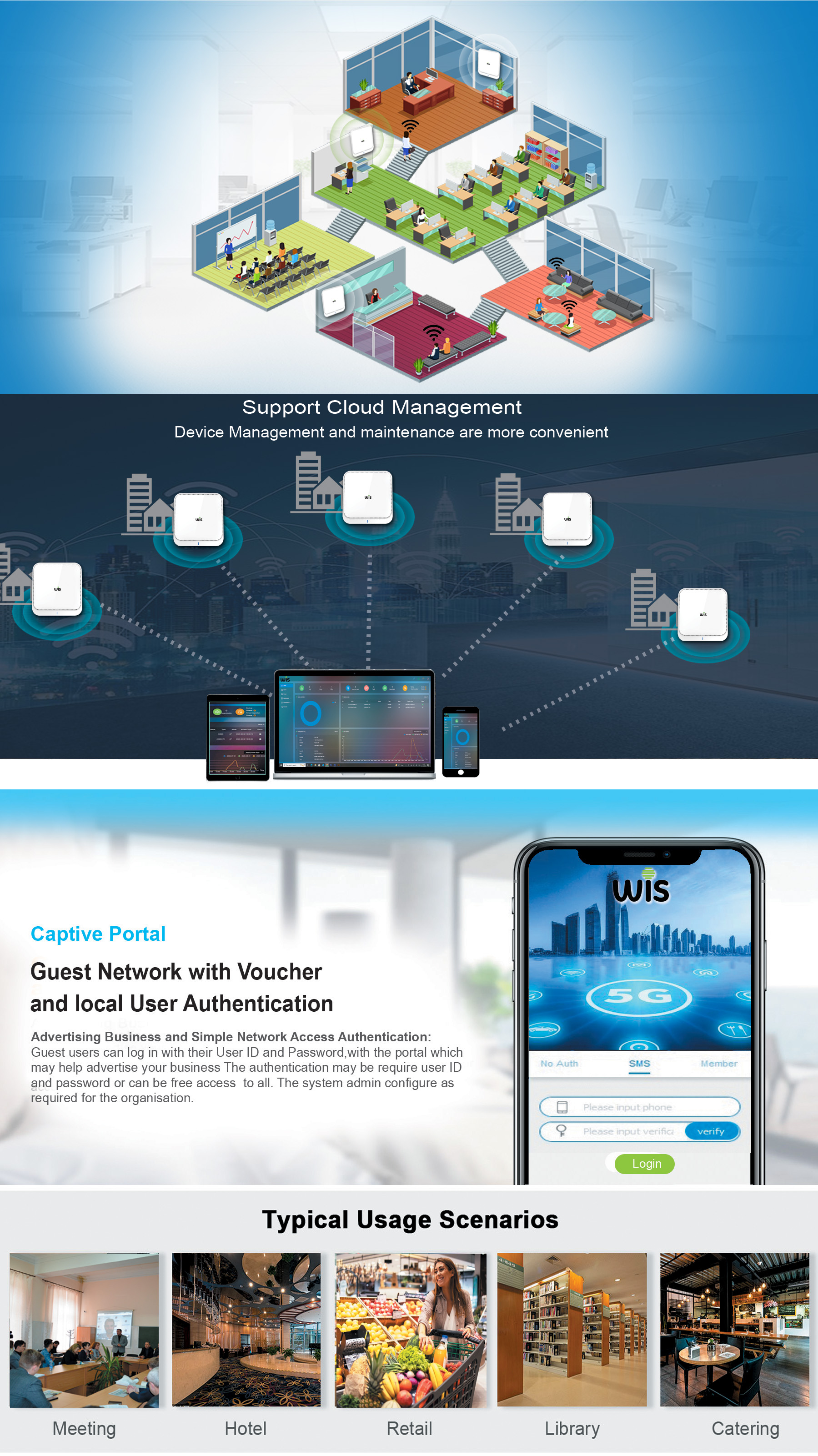

| Support firmware GUI web management, AC controller management, remote management and | |
| Cloud management |
WIS-EAP530E
